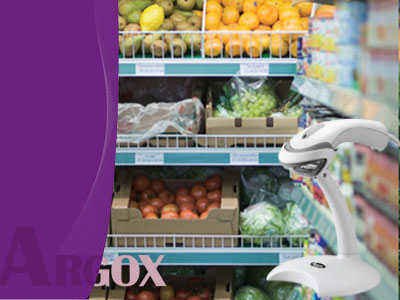

| Bar kod skener AS-8080 |
 |
 |
|
|
Potpuno novi Argox AS-8080 je idealan barkod skener za prodavnice, zamišljen kao barkod skener za skeniranje iz neposredne blizine do 125 mm..Jjednostavna instalacija I mogucnost da bude u crnoj ili sivoj boji čini ga poželjnim sredstvom za naše klijente.
|
Argox Argox AS-8080 Specifications
|
| Light source |
660 nm visible red LED |
| Optical system |
2048 pixel CCD (charge-coupled device) |
| Depth of scan field |
0-150 mm
(CODE 39, 500Lux, PCS=90%, 20mils) |
| Scanning width |
95mm wide @ 55mm distance
50mm wide @ 10mm |
| Scan speed |
100 scans/sec |
| Current - sleep mode |
Nil |
| Resolution |
0.1mm(4mils) - Code 39,
PCS=90 % |
| Contaminants |
Sealed to resist airborne particulate contaminants |
| Print contrast |
45% or more |
| Scanning angle |
Pitch: Max 60° ,Yaw:Max 70° |
| EMC |
FCC Class A , CE , BSMI |
| Cable - universal type |
Nil |
| Decode capability |
Autodiscriminates all standard one-dimension barcodes |
| Beeper operation |
7 tones or no beep |
| Indicator |
Green LED |
| Length |
176 mm |
| Depth-handle |
30 mm |
| Depth-head |
40 mm |
| Weight |
90 g (cable not included) |
| Cable - K/B wedge |
Straight 2.0 m |
| Connector type |
Crimp type female connector |
| Case material |
ABS plastic + TPR |
| Input voltage |
5 VDC ± 0.25V |
| Shock resistance |
0? to 45? (32? to 113?) |
| Power - operating |
Max 250mA |
| Power - standby |
30 mA @ 5 VDC |
| Current - operating |
MAx 250 mA @ 5 VDC |
| Current - standby |
30 mA @ 5 VDC |
| DC transformers |
Class 2; 5VDC @ 500 mA |
| Storage |
-20? to 60? (-4? to 140?) |
| Humidity |
10% to 90% relative humidity, non-condensing |
| Light level |
Up to 20000 Lux |
| Shock |
1.5m drop onto concrete |
| Programming method |
Manual (reading special barcode) |
| Program upgrade |
N/A |
| Programmable characteristics |
Code type selection, check digit selection decoding option transmitted character delay, header selection, trailer selection, message suffix, good read beep tone and volume, scanner trigger selection keyboard emulation type (intermessage delay, keyboard type and keyboard language).Serial interface type (ACK/NAK, Xon/Xoff, RTS/CTS, good read LED control, start/stop bits) |
|
