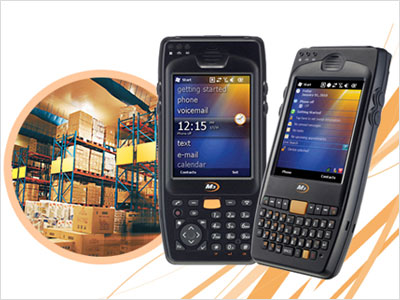

FEATURES Mobile - M3 Orange
|
| Windows Mobile 6.5 |
Windows Mobile 6.5 operating system provides new today screen and faster speed of response time of touch screen. Also, its scrolling display is very finger-friendly to use work applications. |
| Marvell PXA-320 806MHz |
Powerful CPU speed with "High-Tier" guarantees faster graphic process and memory access. |
| IP 65 Sealing, 1.5m Drop |
M3 ORANGE is suitable to use in a tough environment; withstands drops from 1.5m and protects against dust and water. |
| Endurance for temperature |
M3 ORANGE can be operated within -20C to 60C and its storage temperature is -30C to 70C. It will guarantee the normal function at any temperature of working environment. |
| Slim & Light |
M3 ORANGE is a slim and light but rugged PDA with optional RFID reader. It can be used for ticketing and/or asset management wherever the mobile device is needed. |
| 3.0M Pixels AF Camera |
High resolution and auto focused functionality capture clear images of product and/or documentation. |
Battery
(Li-Ion 3.7V 3,300mA) |
M3 ORANGE's smart battery provides accurate remaining battery capacity so that the user can efficiently plan the usage of the PDA. Also, its large capacity is suitable for long time shifts. |
| SPECIFICATION |
| Physical Characteristics |
DIMENSION
(W x H x D) |
Millimeters |
78.6 x 166.2 x 24.9 mm |
| Inch |
3.0 x 6.5 x 0.9 inch |
WEIGHT
(incl. battery) |
Grams |
332 g |
| Ounce |
11.7 oz. |
| DISPLAY |
Size |
3.5" |
| Type |
QVGA TFT LCD |
| Pixels |
240 X 320 pixels |
| BATTERY |
Type |
Smart Battery |
| Cell |
Li-Ion |
| Power |
3.7 V, 3,300 mA |
| Performance Characteristics |
| MULTI-PROCESSOR |
CPU |
Marvell Xscale PXA-320 806 MHz |
| Radio |
ARM9 series |
| OS |
WM |
Windows Mobile 6.5 |
| CE |
|
| MEMORY |
RAM |
256 MB |
| ROM |
1 GB |
| Card Slot |
Micro SD, up to 32 GB |
| USB INTERFACE |
Host |
1.1 |
| Client |
1.1 |
| User Environment |
| TEMPERATURE |
Operating |
-20 to 60 C / -4 to 140 F |
| Storing |
-30 to 70 C / -22 to 158 F |
| HUMIDITY |
93% non-condensing |
| DROP TEST |
1.5 m / 5 ft |
| IP RATING |
IP65 |
| Wireless Radio Options |
| WWAN |
2G Network (GSM/GPRS/EDGE) |
850/900/1800/1900 MHz |
| 2G Network (CDMA 1x/EVDO) |
|
| 3G Network (HSDPA/HSPA+) |
850/1900/2100 MHz |
| WAN |
Standard |
IEEE 802.11 |
| Bandwidth |
a/b/g |
| Security |
WEP, WPA, WPA2, TKIP, AES, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP- TLS, PEAP-MSCHAPv2, LEAP, CCXv4 |
| BLUETOOTH |
Class |
Class II |
| Version |
2.0 |
| RFID |
Frequency |
HF: 13.56 MHz
UHF: 868 ~ 956 MHz |
| Standard |
HF: ISO 14443 A/B, ISO 15693, ISO 18000-3, I-CODE,
UHF: EPC C1 G2 |
| GPS |
AGPS |
| General Options |
| SCANNER |
1D |
Option |
| 2D |
Option |
| Long range |
|
| CAMERA |
Pixels |
3.0 M |
| Focus |
Auto Focus |
| Keypad |
Alpha-Numeric |
31 key |
| QWERTY |
50 key |
| AZERTY |
|
| * The contents of this specification were made based on the "current state" of the product, and this specification may change without notice. |
|
